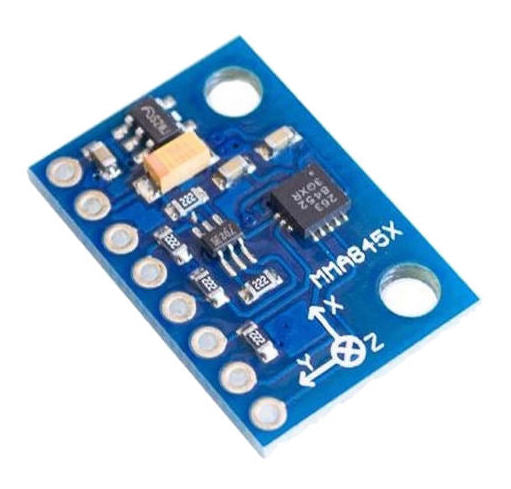

Accelerometer Sensor Module - MMA8452
Accelerometer Sensor Module - MMA8452
Product ID: SEN00100
Regular price
$8.95
Regular price
Sale price
$8.95
Unit price
per
Tax included.
Couldn't load pickup availability
Measure accelerations in 3 dimensions.
View full details
More Information
Specifications
| Length | 21 mm |
| Width | 15 mm |
| Interface | I2C |
| Operating voltage | 3.3 - 5 VDC |

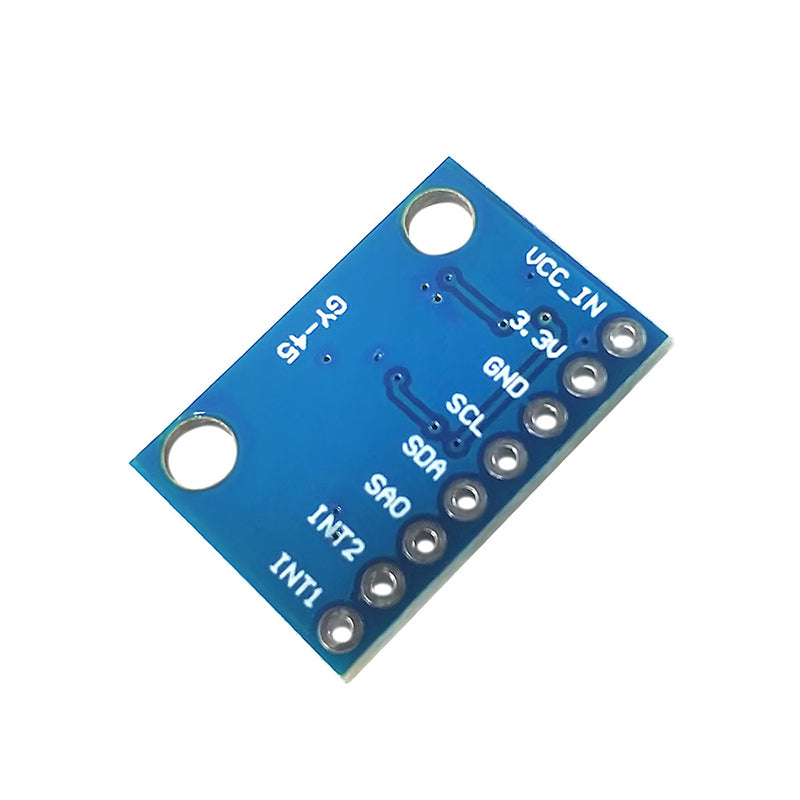

Pinout
| Pin | Name | Description |
|---|---|---|
| 1 | VCC_IN | Unregulated power input |
| 2 | 3.3V | Regulated 3.3V output |
| 3 | GND | Circuit ground |
| 4 | SCL | I2C Serial Clock |
| 5 | SDA | I2C Serial Data |
| 6 | SA0 | I2C Address select |
| 7 | INT2 | Interrupt output 2 |
| 8 | INT1 | Interrupt output 1 |
Datasheet
| IC | Link |
|---|---|
| MMA8452Q | NXP Semiconductors |
| TC2014 | Microchip Technology Inc. |
| 2N7002DW | Diodes Incorporated |
Notes
- I2C interface address may be selected by setting SA0 to LOW:
0x1Cor HIGH:0x1D
